Artemis: Structured Visual Reasoning for Perception Policy Learning

Abstract

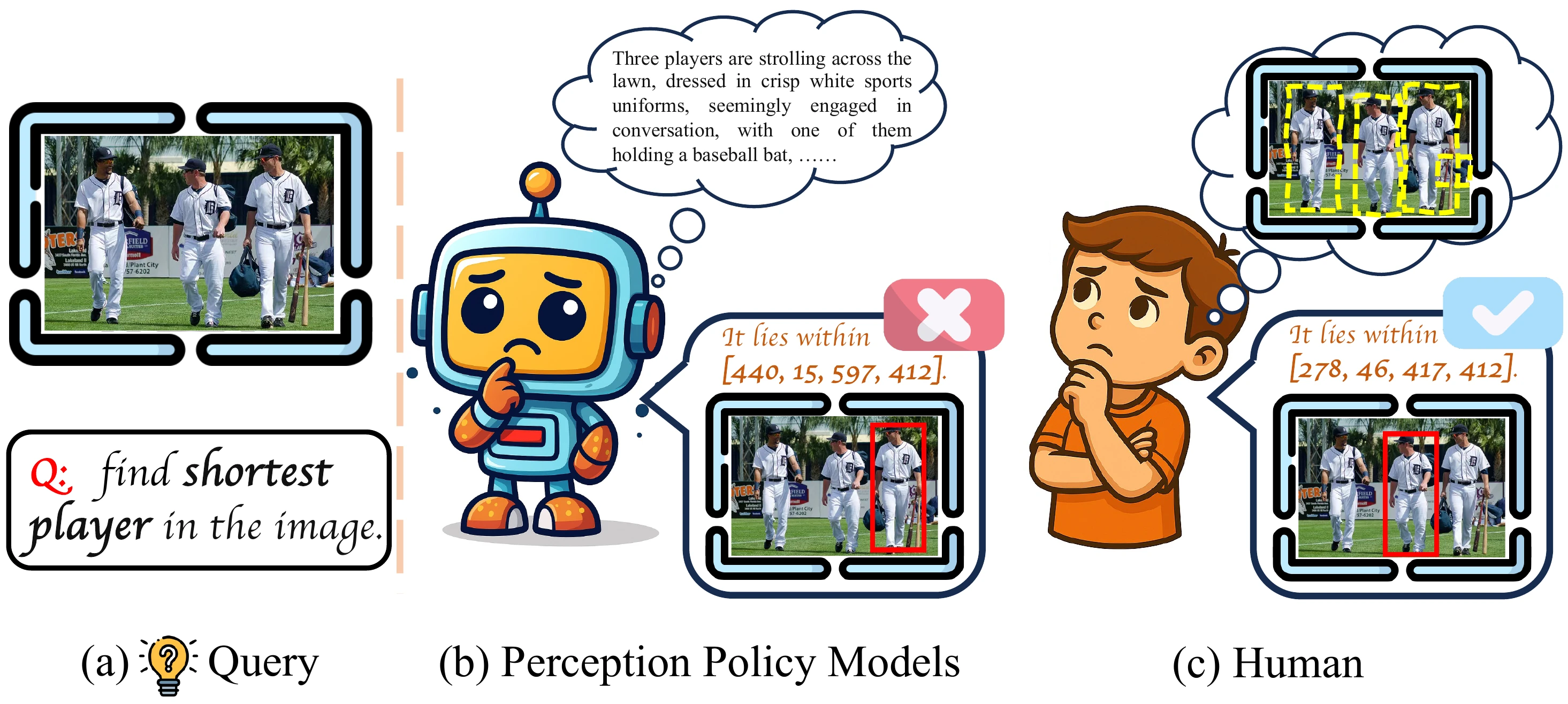

Recent reinforcement-learning frameworks for visual perception policy have begun to incorporate intermediate reasoning chains expressed in natural language. Empirical observations indicate that such purely linguistic intermediate reasoning often reduces performance on perception tasks. We argue that the core issue lies not in reasoning per se but in the form of reasoning: while these chains perform semantic reasoning in an unstructured linguistic space, visual perception requires reasoning in a spatial and object-centric space.

In response, we introduce Artemis, a perception-policy learning framework that performs structured proposal-based reasoning, where each intermediate step is represented as a (label, bounding-box) pair capturing a verifiable visual state. This design enables explicit tracking of intermediate states, direct supervision for proposal quality, and avoids ambiguity introduced by language-based reasoning.

Artemis is built on Qwen2.5-VL-3B, achieves strong performance on grounding and detection task and exhibits substantial generalization to counting and geometric-perception tasks. The consistent improvements across these diverse settings confirm that aligning reasoning with spatial representations enhances perception-policy learning. Owing to its strengthened visual reasoning, Artemis also achieves competitive performance on general MLLM benchmarks, illustrating that spatially grounded reasoning provides a principled route toward scalable and general perception policies.

Method

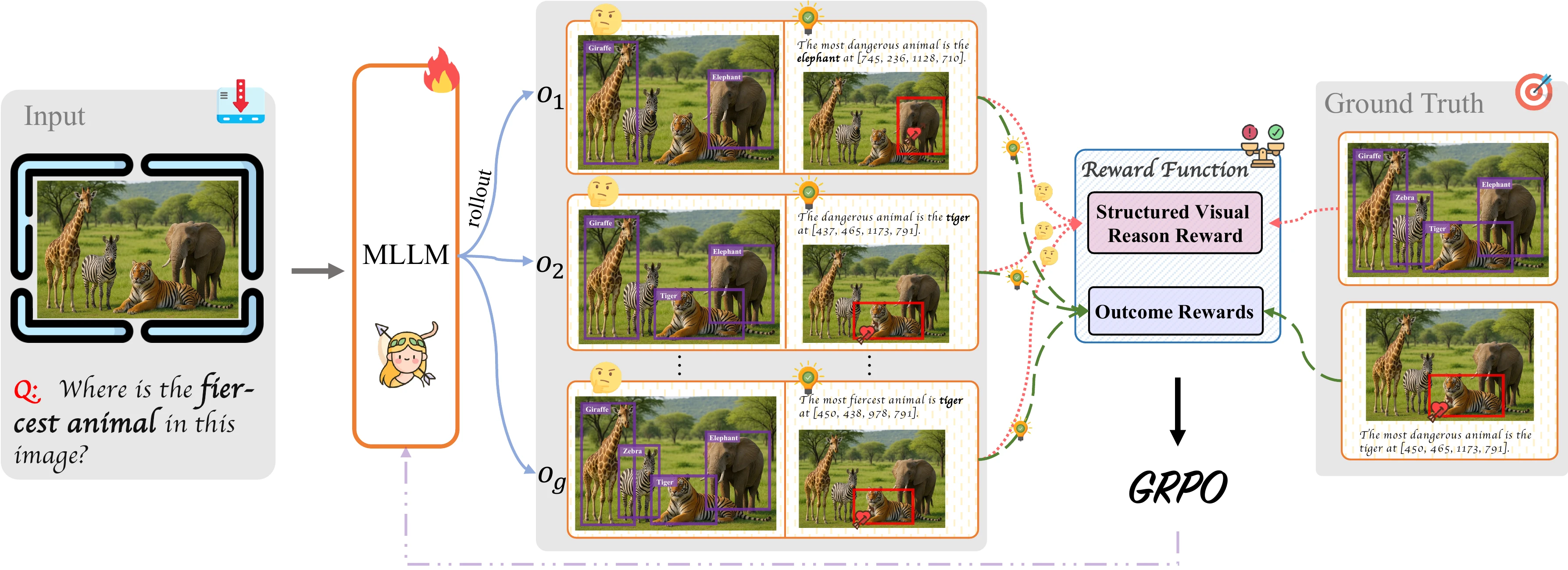

Artemis is a unified framework for RL-based perception-policy learning. Rollouts generated by MLLM are encouraged to perceive structured visual evidence before decision-making, guided by the structured visual reasoning reward, while the outcome rewards supervise the format and answer generation. GRPO is employed to optimize the unified perception-policy learning framework.

Key Innovations

Rethink of Perception-Policy Learning: Instead of reasoning in linguistic space or removing the thinking process, we rethink what form of thinking truly benefits perception, and align the learning with spatial and object-centric representations.
Structured Visual Reasoning: Intermediate steps are represented as (label, bounding-box) pairs, enabling explicit tracking of key and contextual objects and reducing ambiguity from language-based reasoning.
Cross-task Generalization: A single perception policy transfers from grounding to counting and from natural images to diagrams, achieving scalable improvements across diverse visual tasks.

Structured Visual Reasoning

Artemis explicitly generates structured visual evidence during the <think> phase. By tracking intermediate states as labeled bounding boxes, the model learns to locate key and contextual objects before producing final answers. This approach strengthens object-centric perception, reduces ambiguity from language-based reasoning, and enables robust generalization across multiple visual domains.

In-domain Visual Perception

We evaluate our unified visual perception learning framework, Artemis, on two in-domain tasks: visual grounding and object detection. Models marked with ^† denote results from our own inference.

Referring Expression Comprehension (Grounding)

Method	Size	RefCOCO
Method	Size	val@50	testA@50	testB@50	val@75	testA@75	testB@75	val@95	testA@95	testB@95	val_Avg	testA_Avg	testB_Avg
Expert Models
MDETR	-	87.5	90.4	82.6	-	-	-	-	-	-	-	-	-
OFA	-	88.4	90.6	83.3	-	-	-	-	-	-	-	-	-
General MLLMs
LLaVA-v1.5	7B	49.1	54.9	43.3	10.7	13.6	6.9	0.4	0.3	0.3	20.1	22.9	16.8
LLaVA-OV	7B	73.0	82.3	63.5	24.2	29.6	15.9	0.5	0.5	0.5	32.6	37.5	26.6
Qwen2-VL	2B	86.8	89.6	82.0	77.2	80.6	70.1	33.0	35.7	26.9	65.7	68.6	59.7
Qwen2.5-VL^†	3B	88.6	91.7	84.0	79.1	83.5	71.2	34.6	37.9	27.8	67.4	71.0	61.0
DeepSeek-VL2-Tiny^†	3B	83.5	86.7	77.9	69.7	74.1	60.0	24.6	29.2	19.3	59.3	63.3	52.4
RL-based MLLMs
Perception-R1	2B	89.1	91.4	84.5	79.5	83.6	72.4	35.0	38.5	28.8	67.9	71.2	61.9
Vision-R1^†	7B	89.6	92.9	84.9	80.0	84.7	72.6	33.6	36.8	28.6	67.7	71.5	62.0
VLM-R1^†	3B	90.7	92.8	85.9	81.6	84.7	73.5	35.6	37.9	27.7	69.3	71.8	62.4
Artemis	3B	91.3	93.4	87.0	83.6	86.4	76.5	40.1	42.8	33.4	71.7	74.2	65.6
Method	Size	RefCOCO+
Method	Size	val@50	testA@50	testB@50	val@75	testA@75	testB@75	val@95	testA@95	testB@95	val_Avg	testA_Avg	testB_Avg
Expert Models
MDETR	-	81.1	85.5	72.9	-	-	-	-	-	-	-	-	-
OFA	-	81.3	87.1	74.2	-	-	-	-	-	-	-	-	-
General MLLMs
LLaVA-v1.5	7B	42.4	49.7	36.4	9.8	12.4	6.4	0.5	0.5	0.2	17.6	20.8	14.3
LLaVA-OV	7B	65.8	79.0	57.2	23.6	28.8	15.3	0.6	0.6	0.4	30.0	36.1	24.3
Qwen2-VL	2B	77.1	82.5	70.1	68.7	73.8	60.0	29.4	32.3	23.0	58.4	62.9	51.0
Qwen2.5-VL^†	3B	81.9	87.3	74.7	73.2	79.3	63.9	32.3	35.8	25.4	62.5	67.5	54.7
DeepSeek-VL2-Tiny^†	3B	73.3	81.3	63.5	61.9	70.2	49.4	22.1	27.3	16.1	52.4	59.6	43.0
RL-based MLLMs
Perception-R1	2B	81.7	86.8	74.3	73.6	79.3	64.2	32.6	36.9	26.7	62.6	67.7	55.1
Vision-R1^†	7B	83.0	89.0	75.3	74.7	81.7	64.1	31.5	35.2	25.6	63.1	68.6	55.0
VLM-R1^†	3B	84.2	89.3	76.6	76.1	81.2	65.7	33.4	36.4	25.9	64.6	69.0	56.1
Artemis	3B	85.3	89.9	77.8	78.3	82.9	68.7	38.3	41.7	30.0	67.3	71.5	58.7
Method	Size	RefCOCOg
Method	Size	val@50	testA@50	testB@50	val@75	testA@75	testB@75	val@95	testA@95	testB@95	val_Avg	testA_Avg	testB_Avg
Expert Models
MDETR	-	83.3	83.3		-	-		-	-		-	-
OFA	-	82.2	82.3		-	-		-	-		-	-
General MLLMs
LLaVA-v1.5	7B	43.2	45.1		8.5	9.3		0.3	0.3		17.3	18.2
LLaVA-OV	7B	70.8	70.8		23.3	23.6		0.6	0.7		31.6	31.7
Qwen2-VL	2B	83.3	83.1		72.7	73.0		28.9	27.9		61.6	61.3
Qwen2.5-VL^†	3B	85.1	85.7		74.4	75.8		32.1	33.1		63.9	64.9
DeepSeek-VL2-Tiny^†	3B	75.7	79.2		60.4	63.1		19.1	21.0		38.8	54.4
RL-based MLLMs
Perception-R1	2B	85.7	85.4		75.7	76.0		32.1	33.1		64.5	64.8
Vision-R1^†	7B	86.4	86.9		76.4	77.8		32.4	33.1		65.1	65.9
VLM-R1^†	3B	86.0	86.7		75.1	76.8		32.7	32.9		64.6	65.5
Artemis	3B	87.3	87.3		77.7	79.4		36.3	37.9		67.1	68.2

Object Detection (COCO2017 Val)

Method	Size	Epoch	mAP	AP50	AP75	AR100
Expert Models
YOLOv3	-	273	27.9	49.2	28.3	-
Faster-RCNN	-	12	35.6	55.7	37.9	-
General MLLMs
Qwen2.5-VL†	3B	1	15.4	22.5	15.9	29.8
Griffon	13B	1	24.8	40.6	25.1	-
RL-based MLLMs
VLM-R1†	3B	1	21.6	35.6	21.7	33.2
Vision-R1	7B	1	26.6	40.0	27.8	-
Perception-R1	3B	1	31.9	46.7	33.4	41.2
Artemis	3B	1	31.0	48.0	31.9	46.6

Key Findings

Superior Visual Grounding: Artemis consistently outperforms SOTA methods across RefCOCO/+/g splits, especially at high IoU thresholds, producing highly precise bounding boxes.
Strong Object Detection: On COCO2017 val, Artemis achieves mAP 31.0, AP50 48.0, and AR100 46.6, representing the only unified RL-based 3B-scale model to surpass mAP 30 while demonstrating complete scene understanding.
Enhanced In-domain Perception: Structured visual reasoning significantly boosts MLLM perception abilities, with Artemis outperforming other RL-based models in in-domain tasks, highlighting its effectiveness for accurate object localization and recognition.

Zero-shot Out-of-domain Visual Perception on Natural Scenes

In zero-shot settings, we evaluate Artemis on out-of-domain visual counting using the Pixmo dataset and on reasoning grounding using the LISA grounding dataset. Models marked with ^† denote results from our own inference. Models marked with ^‡ follow a detect-then-count paradigm, deriving counts from predicted boxes.

Method	Size	Pixmo_val	Pixmo_test	LISA_test
General MLLMs
LLaVA-v1.5^†	7B	33.3	31.0	-
LLaVA-OV	7B	55.8	53.7	-
Qwen2-VL	2B	60.2	50.5	-
Qwen2.5-VL^†	3B	58.0	57.8	67.4
RL-based MLLMs
VisionReasoner^‡	7B	70.1	69.5	-
Perception-R1^‡	2B	78.1	75.6	-
UniVG-R1	7B	-	-	59.7
No-Thinking-RL	2B	-	-	61.8
VLM-R1	3B	-	-	63.1
Artemis	3B	81.4	76.92	78.3

Key Findings

Human-like Zero-shot Counting: On the Pixmo-Count dataset, Artemis internally enumerates instances during the <think> phase and directly outputs numeric counts, achieving strong zero-shot performance without any counting-specific training and outperforming detect-then-count baselines.
Enhanced Zero-shot Visual Perception: On the LISA test set, Artemis reaches 78.3 accuracy, substantially exceeding prior methods, showing that structured visual reasoning improves reasoning-dependent perception in natural scenes and reduces linguistic hallucinations.

Zero-shot Out-of-domain Visual Perception on Diagram Understanding

We evaluate Artemis on the MATHGLANCE benchmark covering plane geometry, solid geometry, and graphs. The evaluation reports zero-shot accuracy for overall questions in each domain. Models marked with ^† denote results from our own inference.

Model	Size	Avg.	Plane Geo.	Solid Geo.	Graphs
General MLLMs
G-LLaVA	7B	30.3	25.6	32.3	33.9
DeepSeek-VL2-Tiny	3B	32.6	29.5	39.0	29.4
Qwen2.5-VL†	3B	33.1	31.0	37.1	31.2
LLaVA-v1.5	7B	33.3	29.2	31.6	39.0
RL-based MLLMs
VLM-R1†	3B	34.4	26.9	43.6	32.6
No-Thinking-RL†	2B	45.3	33.2	56.4	46.3
Perception-R1†	2B	45.3	29.7	59.5	46.8
Artemis	3B	49.3	39.2	56.4	52.3

Key Findings

Superior Zero-shot Math Perception: On the MATHGLANCE benchmark, Artemis achieves the best overall average score (49.3), substantially outperforming general MLLMs such as Qwen2.5-VL and LLaVA-v1.5.
Outperforming RL-based Models: Artemis surpasses recent R1-based models including Perception-R1 and No-Thinking-RL, demonstrating stronger visual reasoning across plane geometry, solid geometry, and graph-based problems.
Cross-domain Generalization: Structured visual reasoning learned from natural images transfers effectively to math-related visual scenes, highlighting Artemis’ robust perceptual capabilities and generalization across diverse visual tasks.

Zero-shot Comprehensive Visual Perception

We evaluate Artemis on multiple mainstream multimodal benchmarks, including MMBench, MMVet, MMStar, ScienceQA, SeedBench, MME, AI2D, OCRBench, POPE, and BLINK. The evaluation reports zero-shot performance across all benchmarks. Models marked with ^† denote results from our own inference.

Model	Size	MMBench Avg.	MMVet Avg.	MMStar Avg.	ScienceQA Avg.	SeedBench Avg.	MME Sum	AI2D Avg.	OCRBench Avg.	POPE Avg.	BLINK Avg.
General MLLMs
LLaVA-v1.5	7B	62.8	32.8	32.6	65.4	60.1	1338.3	51.9	-	-	-
Qwen2-VL	2B	71.9	45.6	46.3	74.0	72.7	1471.1	71.6	-	-	-
DeepSeek-VL2-Tiny	3B	74.6	52.5	-	-	-	1905.5	-	805	-	-
Qwen2.5-VL†	3B	79.1	60.0	53.8	79.3	74.0	2200.0	78.3	826	85.9	48.8
RL-based MLLMs
VLM-R1†	3B	70.7	58.8	53.1	69.4	68.8	2156.2	73.3	774	79.3	46.9
Perception-R1	2B	71.8	48.9	45.7	73.4	73.0	1903.9	71.8	-	-	-
Artemis	3B	79.3	61.4	55.9	79.6	74.3	2229.7	78.2	828	88.6	48.5

Key Findings

Enhanced General Visual Comprehension: Across a wide range of multimodal benchmarks, Artemis demonstrates consistently improved zero-shot performance, showing strengthened perception and uniform alignment across diverse visual tasks without any task-specific tuning.

Visual Grounding Visualization

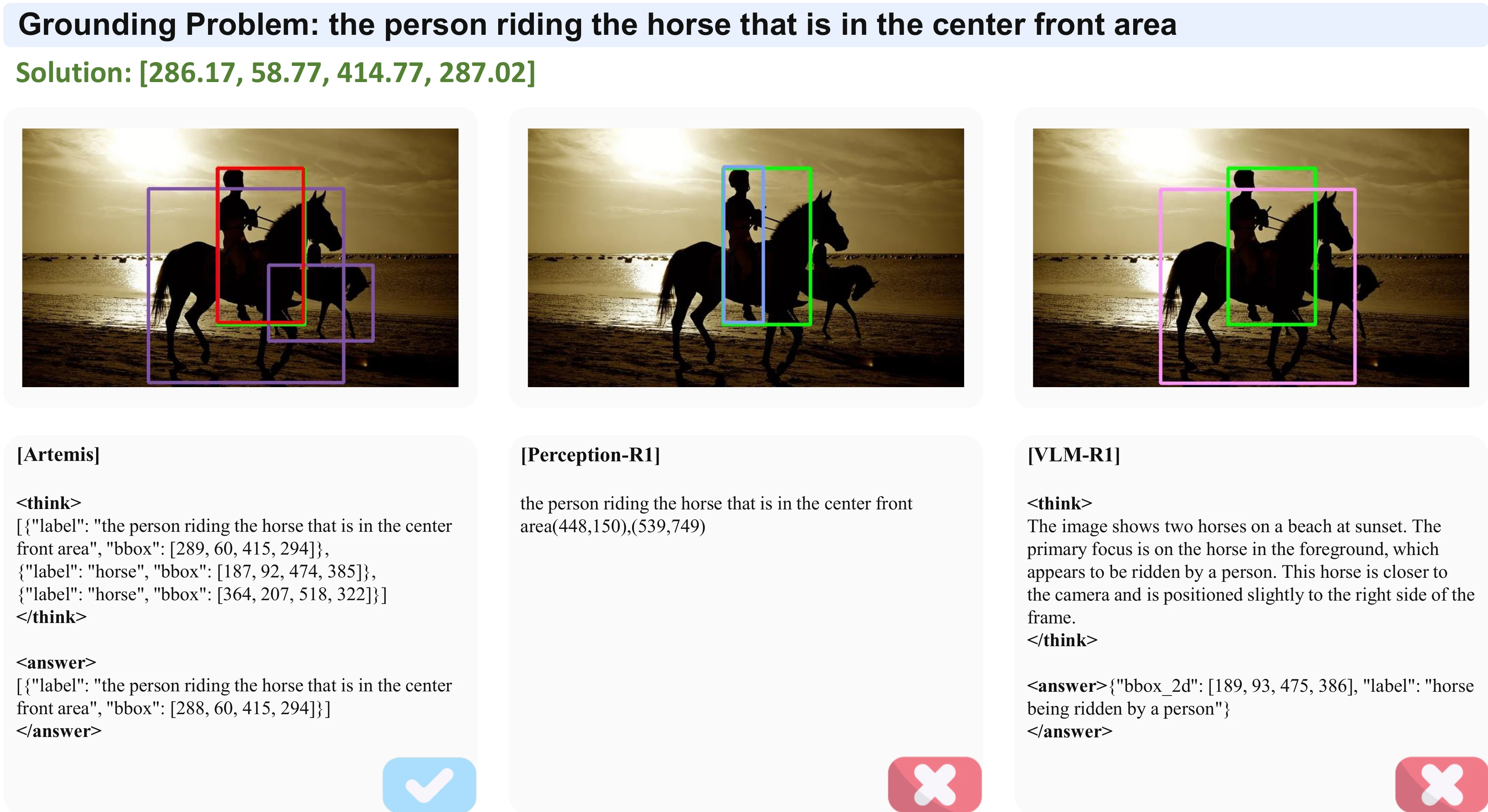

Comparison of visual grounding results among Artemis, skip-reasoning Perception-R1, and linguistic reasoning VLM-R1. Skip-reasoning often leads to inaccurate predictions, while linguistic reasoning suffers from the difficulty of supervising perception-oriented reasoning within the linguistic space, frequently causing mismatches between intermediate reasoning and the final answer. In contrast, Artemis produces precise and high-quality bounding boxes, delivering coherent and accurate grounding by explicitly linking structured visual reasoning with the predicted outputs.

Visual Counting Visualization

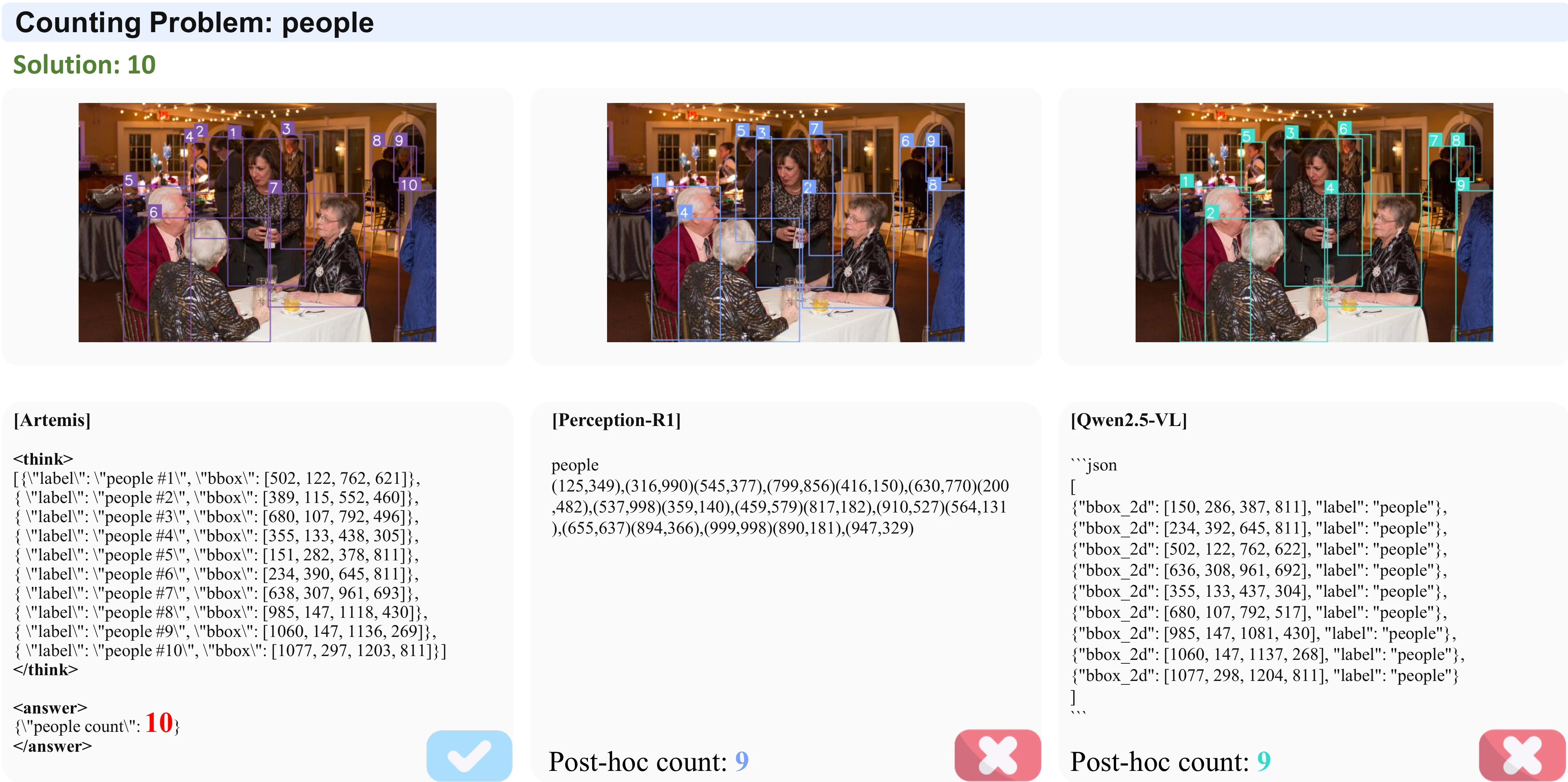

Comparison of zero-shot visual counting results among Perception-R1 (trained on Pixmo), Qwen2.5-VL baseline, and Artemis. Both Perception-R1 and Qwen2.5-VL rely on detect-then-count post-processing, while Artemis internally enumerates queried objects during the reasoning process and directly outputs numeric counts. By leveraging structured visual reasoning, Artemis acquires perceptual skills that transfer seamlessly to counting tasks, resulting in behavior remarkably similar to human intuition.

Mathematical Perception Visualization

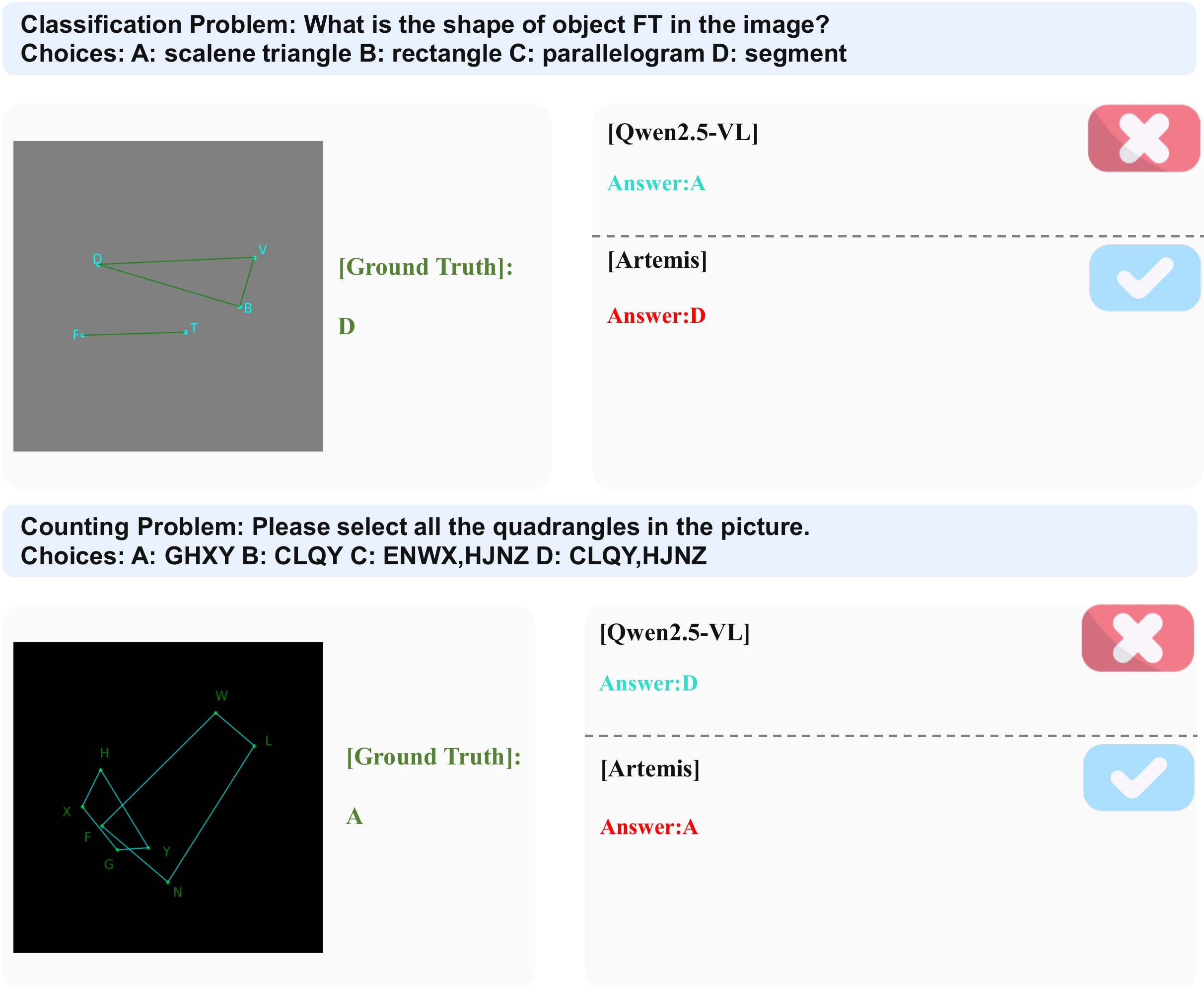

Comparison of mathematical perception between Artemis and Qwen2.5-VL on MATHGLANCE. Artemis correctly identifies shapes and relational configurations in counting and relation tasks, while Qwen2.5-VL makes mistakes, such as selecting an invalid quadrilateral or misperceiving relative positions. This demonstrates that perception capabilities learned from natural images transfer effectively to visually distinct domains, enabling accurate perceptual reasoning in mathematical scenes.

Object Detection & Reasoning Grounding Visualization

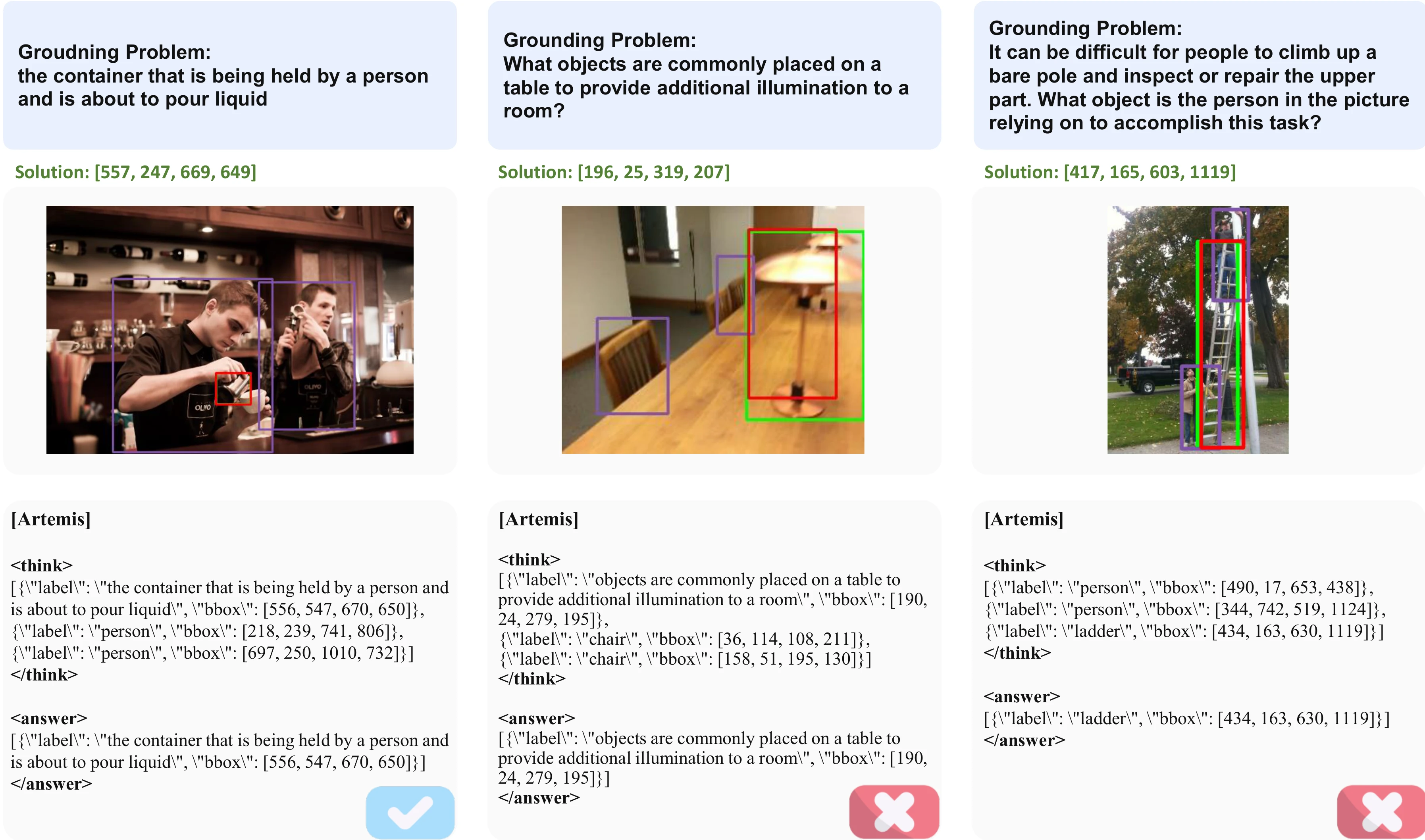

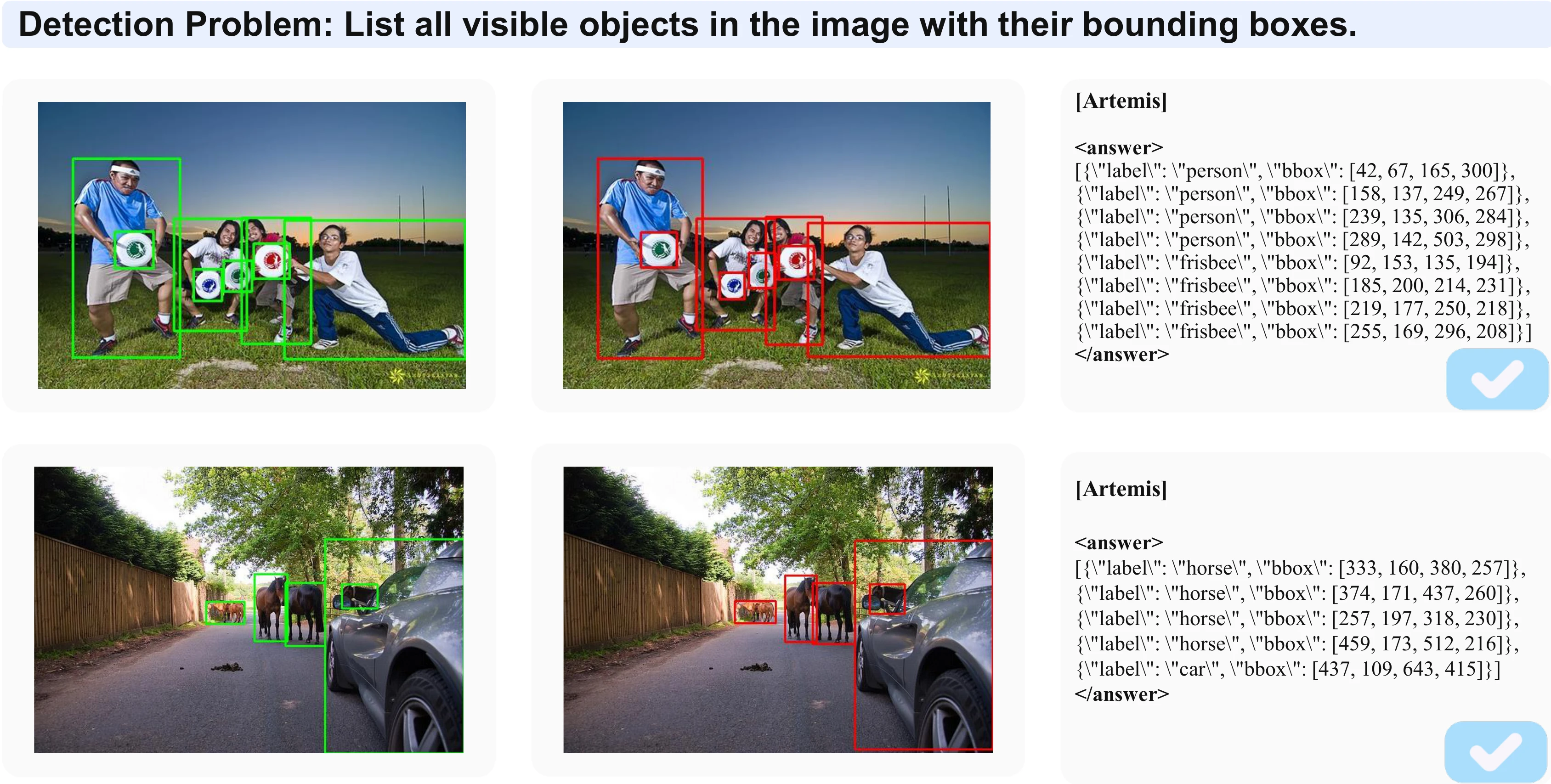

Visualization of Artemis on detection and reasoning grounding tasks shows enhanced scene-level perceptual capabilities. In detection cases, Artemis accurately perceives all ground-truth objects, while in LISA grounding, it identifies relevant visual evidence, such as a person and a ladder, and uses it to infer answers. These results demonstrate that structured visual reasoning training strengthens object-centric perception and improves reasoning-based grounding across diverse tasks.

Training Data Examples

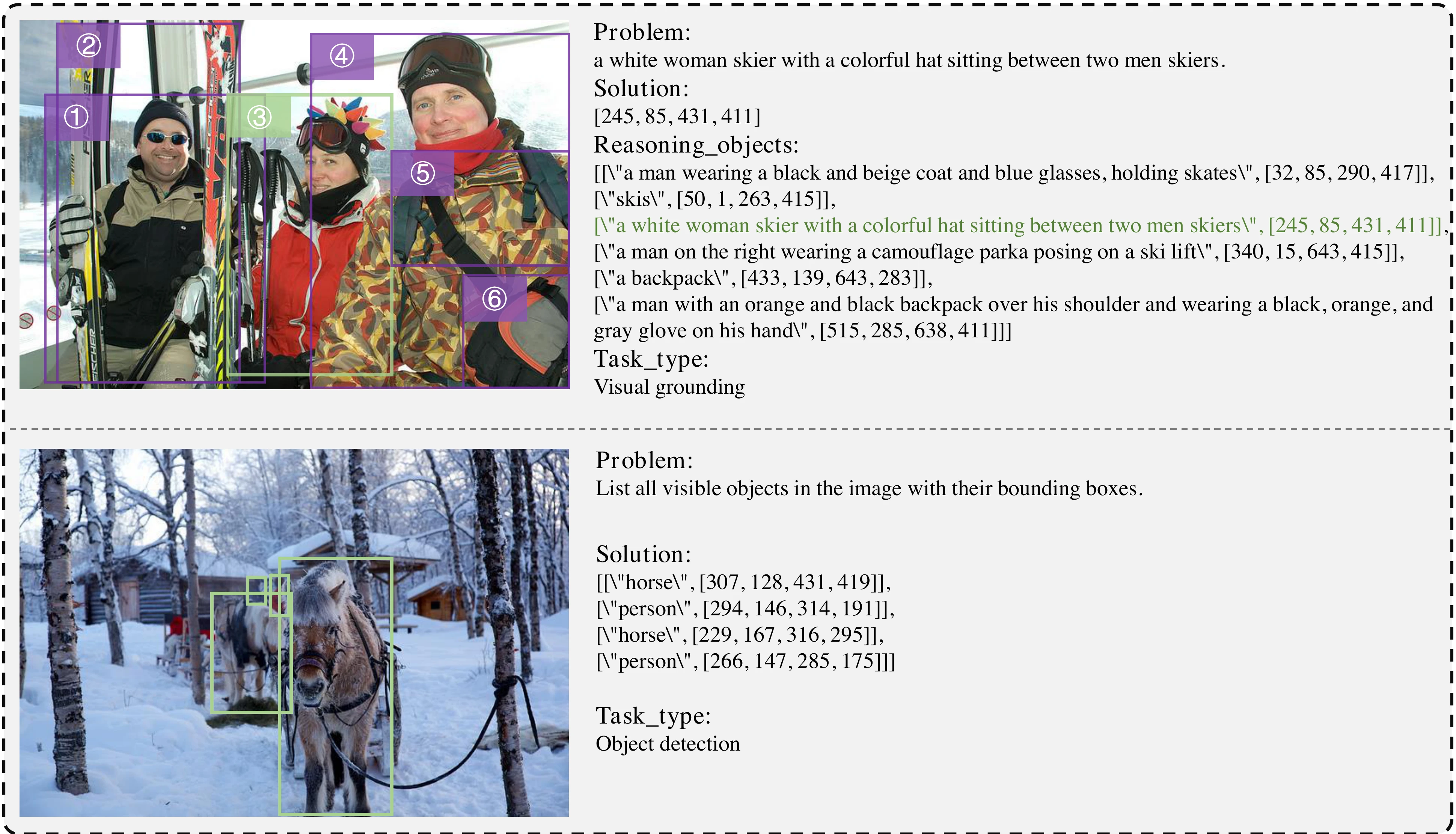

We supervise structured visual reasoning using a dedicated post-training dataset. To support this objective within our unified Artemis framework, we construct the Artemis-RFT dataset from MS-COCO, yielding roughly 77k post-training instances.

A data example of Artemis-RFT is shown below.

BibTeX

@misc{tang2026artemis,
  title={Artemis: Structured Visual Reasoning for Perception Policy Learning},
  author={Tang, Wei and Sun, Yanpeng and Zhang, Shan and Li, Xiaofan and Koniusz, Piotr and Li, Wei and Zhao, Na, and Li, Zechao},
  booktitle={arXiv:2512.01988},
  year={2026}
}
